Visual tutorial: one univariate decomposition

This walkthrough is the shortest path from a raw series to interpretable figures.

Goal

Use one method on one synthetic series and inspect:

  • the original signal,
  • the extracted trend,
  • the extracted seasonal component,
  • the residual magnitude.

Script

Run:

PYTHONPATH=src python3 examples/visual_univariate_walkthrough.py \
  --out-dir out/visual_univariate

This script uses SSA on a synthetic seasonal series with drift and a short localized pulse.

Output files

The script writes:

  • out/visual_univariate/ssa_components.png
  • out/visual_univariate/ssa_residual_error.png
  • out/visual_univariate/ssa_summary.csv
  • out/visual_univariate/ssa_summary.json

Published experiment record:

Published summary from the current docs build:

Method Backend Length Window Rank Residual RMS Peak residual Reconstruction error
SSA native 180 36 8 0.1763 0.4020 0.0000

Published example outputs:

SSA components

SSA residual magnitude

What to look for

These figures and summary values come from a real local run of the tutorial script on the current repository state.

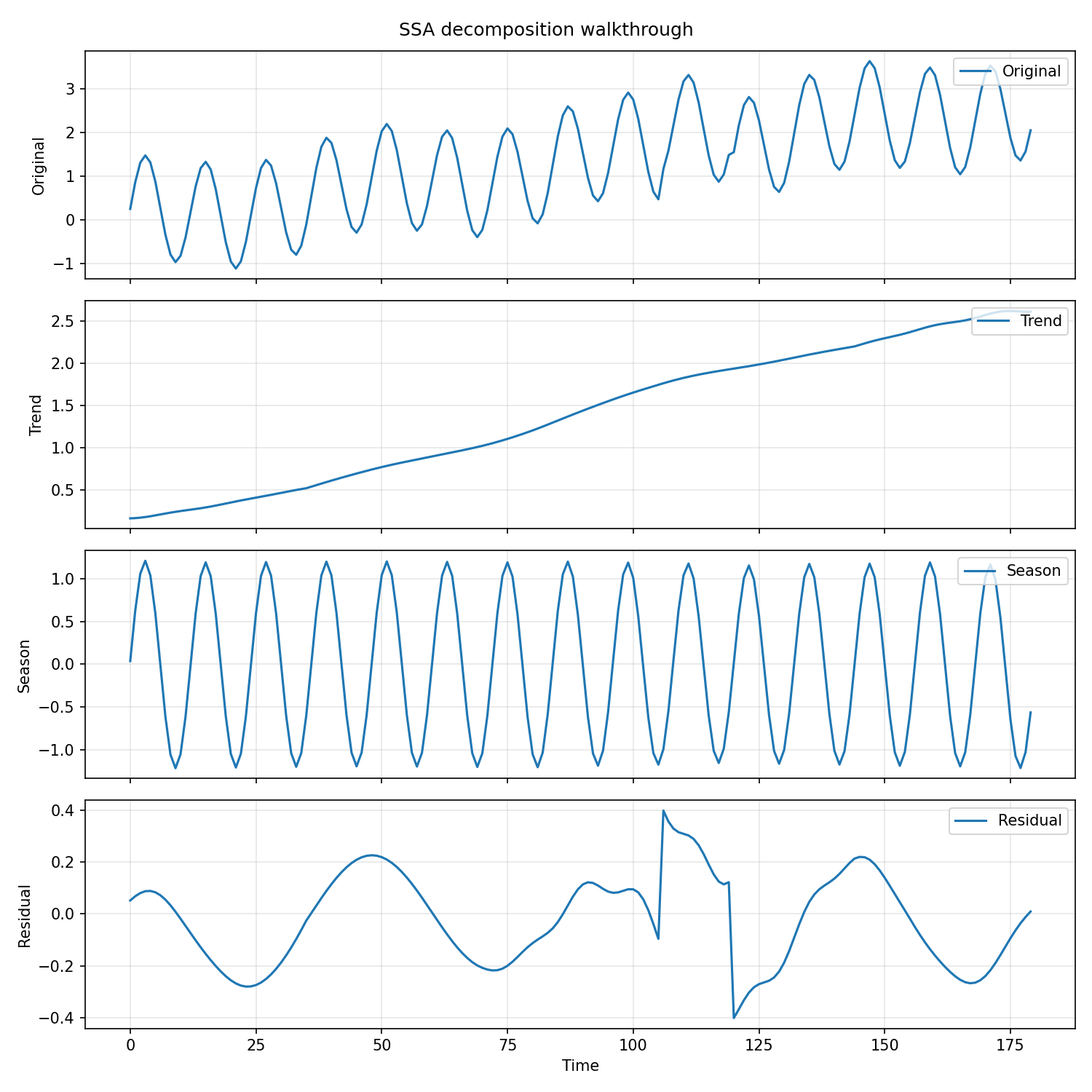

In ssa_components.png:

  • the trend should capture the slow upward drift,
  • the seasonal panel should preserve the repeating 12-step oscillation,
  • the residual should mostly absorb the short pulse and small mismatches.

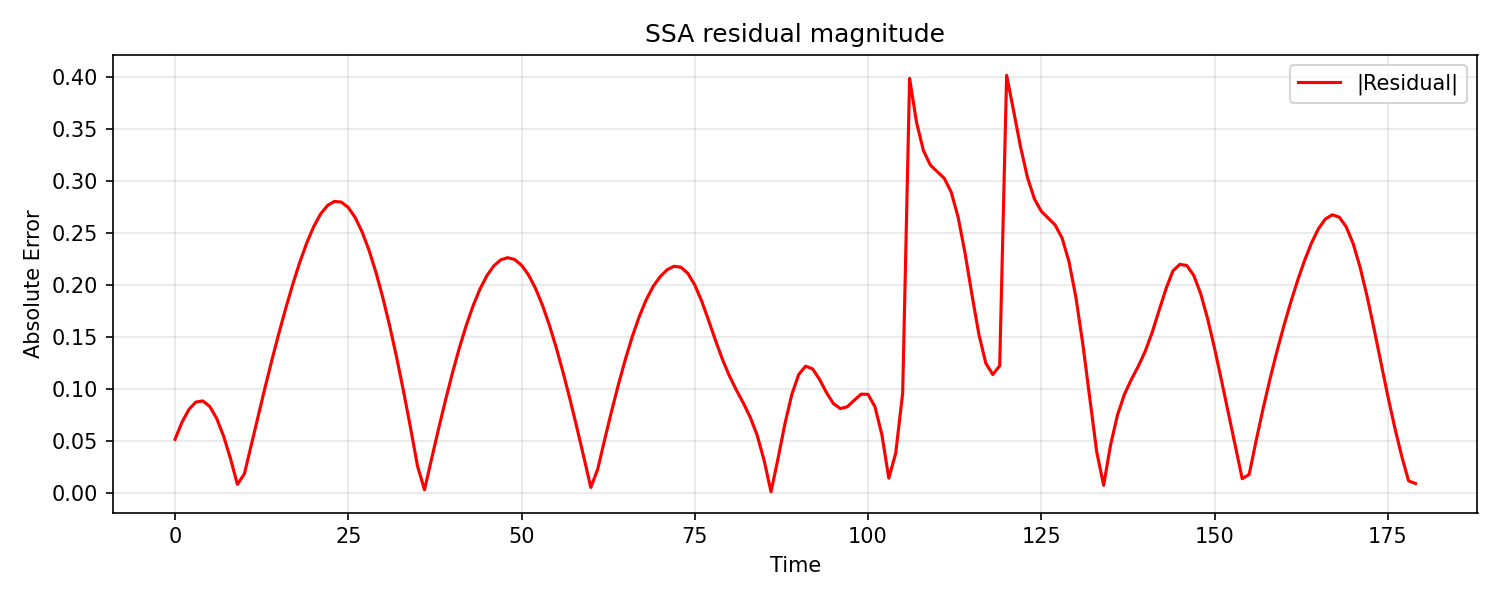

In ssa_residual_error.png:

  • spikes indicate time regions where the decomposition is least comfortable,
  • broad high residual regions often suggest a wrong window, wrong rank, or abrupt structure not well captured by the chosen method.

How to turn this into an experiment

Change only one parameter at a time:

  • increase window to make the trend smoother,
  • reduce rank to force a more compressed representation,
  • compare the figure before and after each change instead of only watching one scalar metric.

This is usually the fastest way to build intuition for SSA.
