Visual tutorial: multivariate decomposition

Multivariate decomposition is easiest to understand when you can see channels side by side.

Goal

Compare:

  • a true joint multivariate method (MSSA),
  • a channelwise baseline (STD run independently on each channel).

Script

Run:

PYTHONPATH=src python3 examples/visual_multivariate_walkthrough.py \
  --out-dir out/visual_multivariate

The script builds a three-channel synthetic panel with related but not identical seasonal structure.

Output files

The script writes:

  • out/visual_multivariate/mssa_multivariate.png
  • out/visual_multivariate/std_channelwise_multivariate.png
  • out/visual_multivariate/channel0_trend_overlay.png
  • out/visual_multivariate/multivariate_summary.csv

Published experiment record:

Published summary from the current docs build:

Channel MSSA backend STD backend MSSA residual RMS STD residual RMS Mean abs trend gap
sensor_a python native 0.0047 0.0000 0.0590
sensor_b python native 0.0038 0.0000 0.0260
sensor_c python native 0.0999 0.0000 0.0128

Published example outputs:

MSSA multivariate components

Channelwise STD multivariate components

Channel 0 trend overlay

What each figure tells you

These summary values come from a real local run of the tutorial script. They show that the multivariate and channelwise paths are not identical even when the figures look superficially similar.

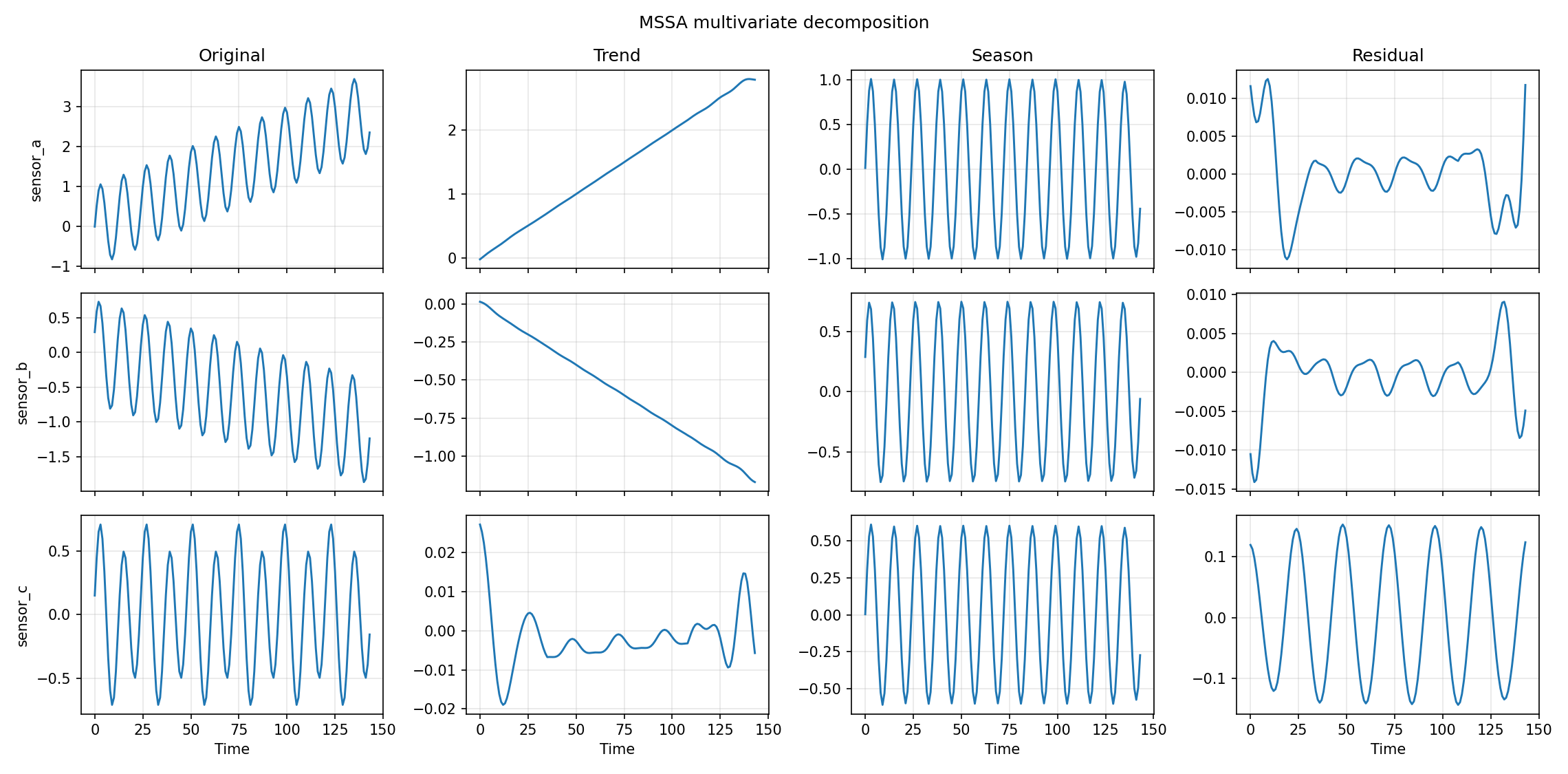

mssa_multivariate.png:

  • look for cross-channel consistency in trend and seasonal extraction,
  • useful when channels share one latent mechanism.

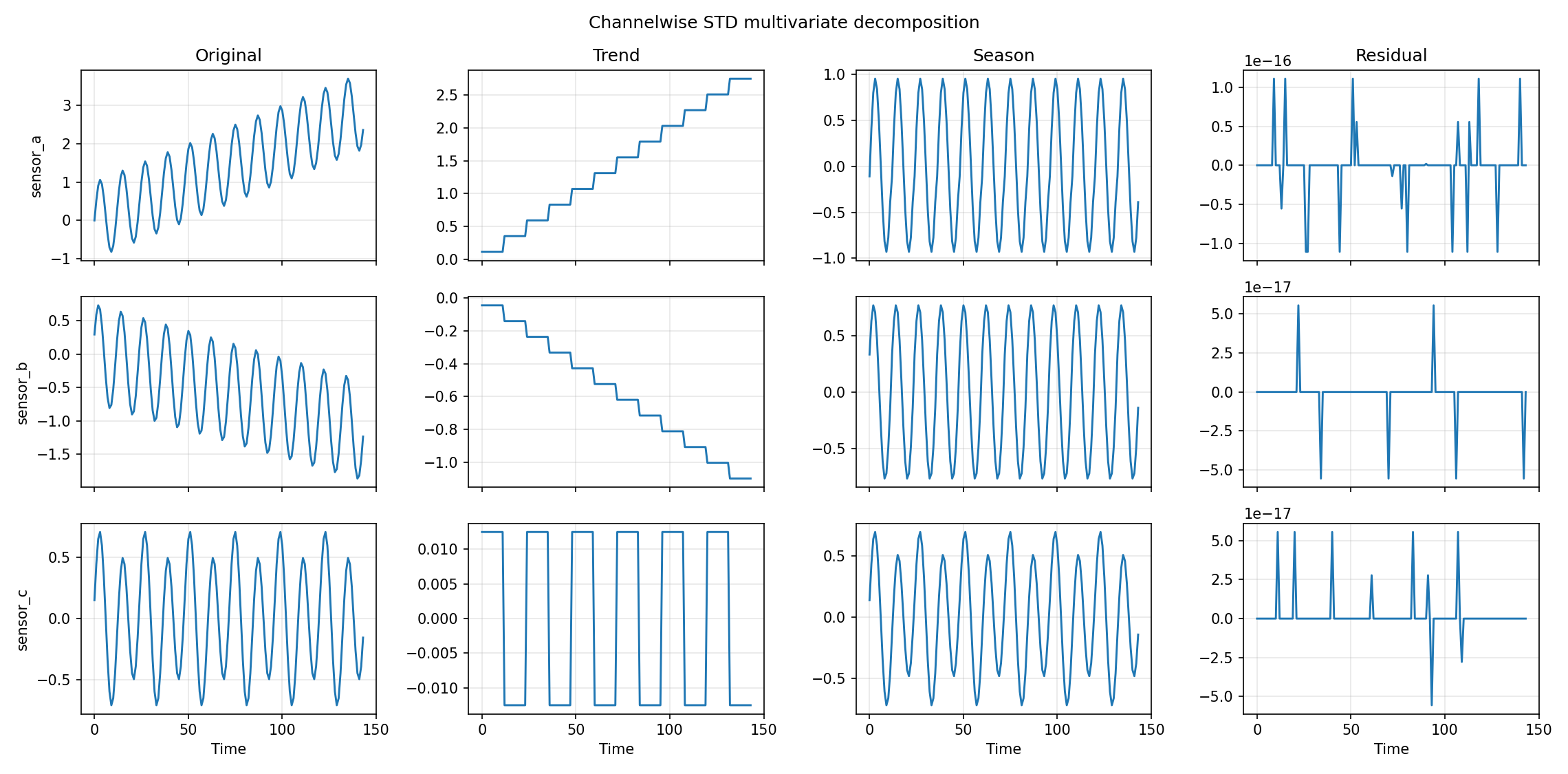

std_channelwise_multivariate.png:

  • shows what happens when each channel is decomposed independently,
  • useful as a baseline when you want interpretability per channel without joint coupling.

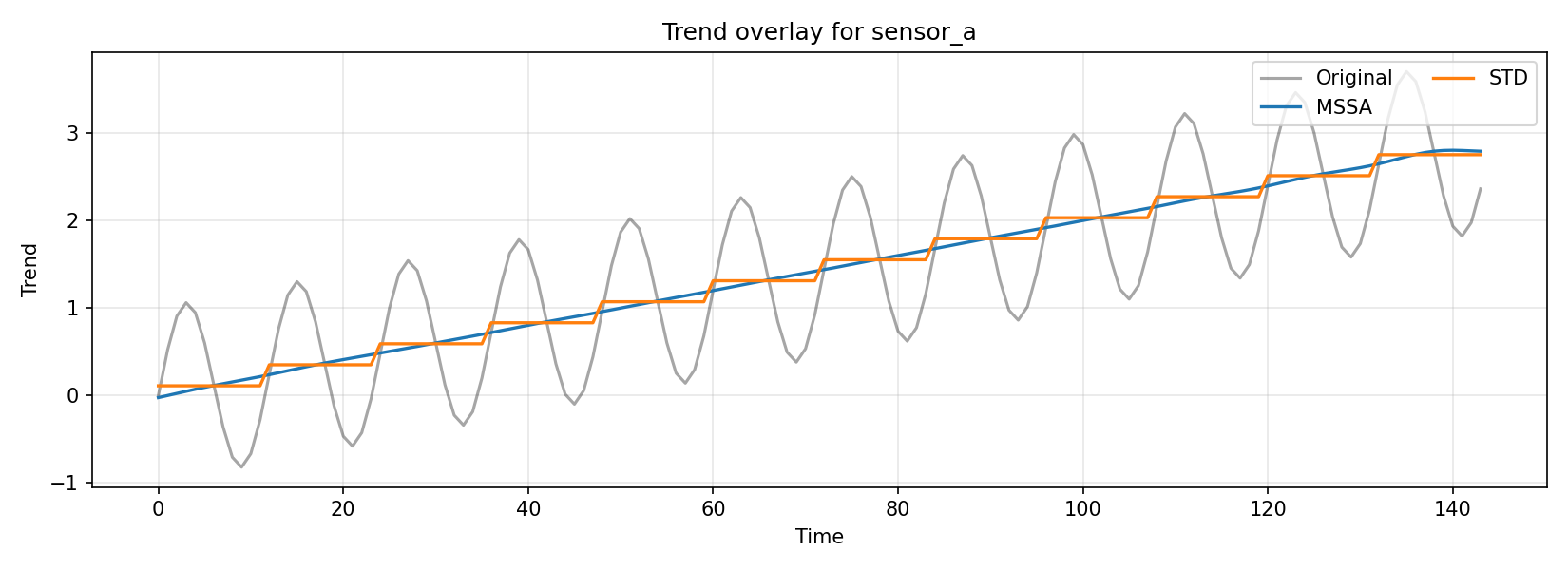

channel0_trend_overlay.png:

  • isolates one channel and overlays the trend from MSSA and channelwise STD,
  • this is the fastest way to see whether joint structure is actually changing the interpretation of one sensor.

When this tutorial is useful

Use this pattern when:

  • you have several sensors that probably share one seasonal driver,
  • you want to justify MSSA instead of a simpler channelwise baseline,
  • you need figures for a methods note, lab notebook, or internal review.

If the multivariate and channelwise figures are nearly identical, a joint method may not be buying you much.
