Visual tutorial: compare methods on the same series

This tutorial is for the question: "which decomposition is behaving qualitatively better on this signal?"

Goal

Run several methods on the same series and compare:

  • their full decomposition panels,
  • their trend estimates,
  • their seasonal estimates.

Script

Run:

PYTHONPATH=src python3 examples/visual_method_comparison.py \
  --out-dir out/visual_method_comparison

This script compares:

  • STD
  • STDR
  • SSA
  • STL

Output files

The script writes:

  • out/visual_method_comparison/method_grid.png
  • out/visual_method_comparison/trend_overlay.png
  • out/visual_method_comparison/season_overlay.png
  • out/visual_method_comparison/comparison_summary.csv

Published experiment record:

Published summary from the current docs build:

Method Backend Trend std Seasonal std Residual RMS Reconstruction error
STD native 1.0123 0.6723 0.0000 0.0000
STDR native 1.0123 0.6723 0.0056 0.0000
SSA native 1.0129 0.7052 0.1766 0.0000
STL python 1.0149 0.7289 0.0012 0.0000

Published example outputs:

Method grid

Trend overlay

Season overlay

How to read the figures

These values come from one actual local run of the published script. The table is useful because it keeps the figure interpretation grounded in recorded numbers rather than only visual preference.

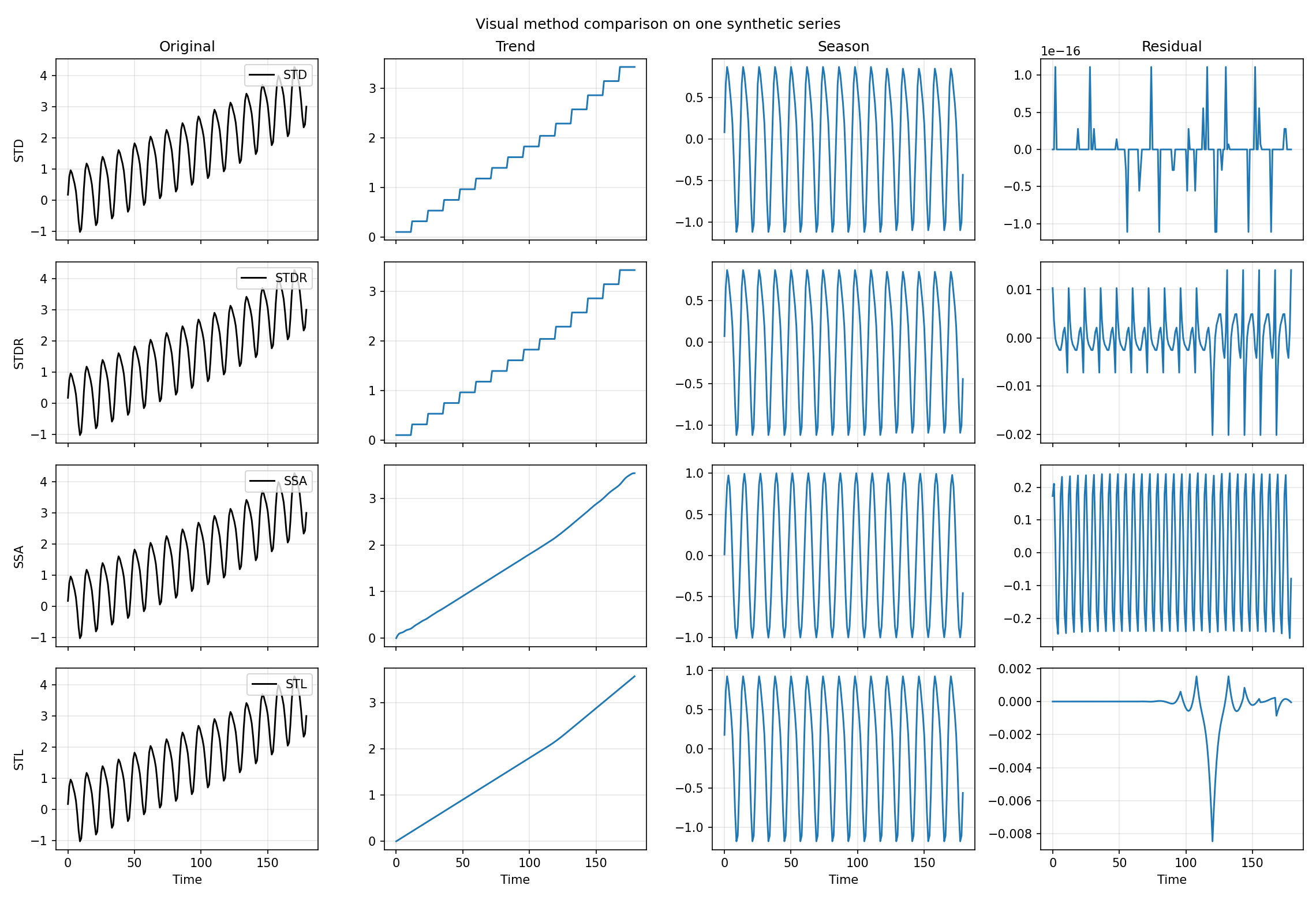

method_grid.png is the broadest comparison:

  • each row is one method,
  • columns show original, trend, season, and residual,
  • use it to see where one method is over-smoothing or leaking seasonality into the trend.

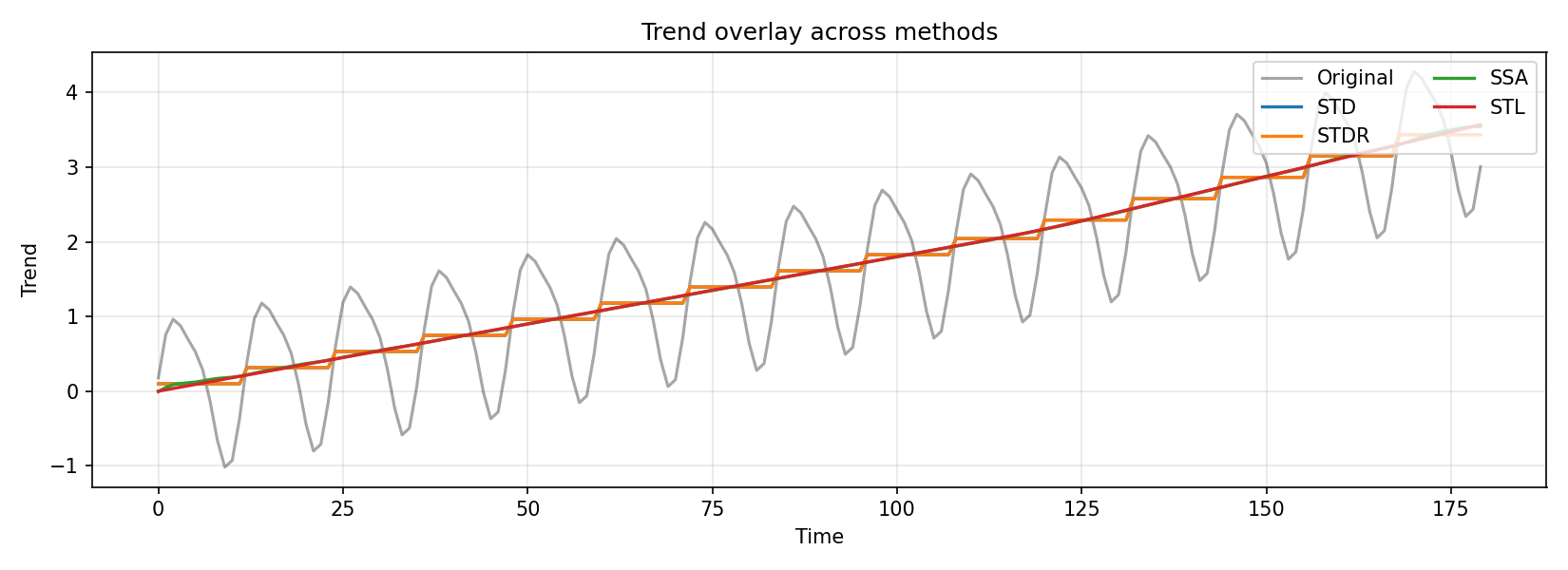

trend_overlay.png is the fastest high-level diagnostic:

  • if one method has a much more jagged trend than the others, it is probably retaining seasonal energy in the trend,
  • if one method is too flat, it may be over-suppressing meaningful drift.

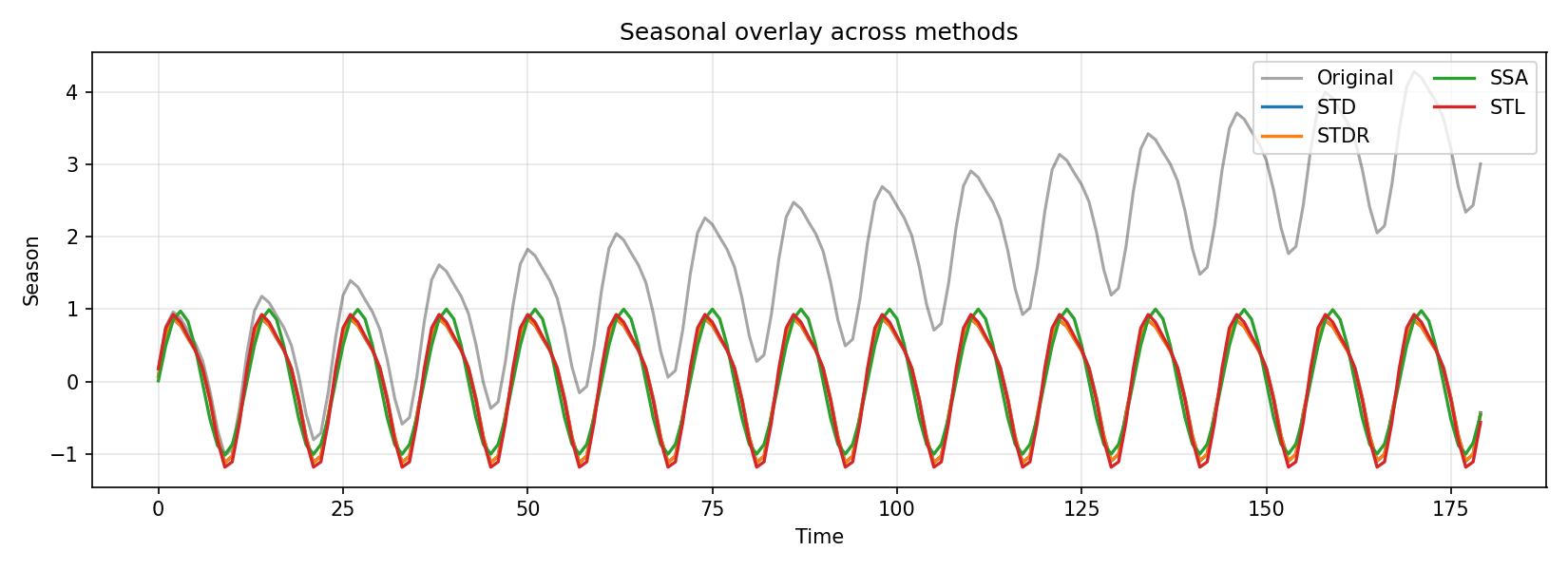

season_overlay.png helps you judge:

  • amplitude consistency,
  • phase alignment,
  • whether a method is inventing oscillation where the others agree there is little structure.

Suggested experimental pattern

Use this workflow when choosing defaults:

  1. Start with 3 to 4 methods, not 10.
  2. Inspect trend overlay first.
  3. Inspect residual structure next.
  4. Only then decide which method deserves benchmarking on a larger sweep.

This prevents spending hours benchmarking methods that already look wrong by inspection.
